Automobile parts
Relevant standards
- Standard of Hyundai & Kia Motors (MS)
- Standard of Daewoo Motor Company(EDS)
- Standard of Ssangyong Motor Company(SES)
- Standard of Samsung Motor Company(SMS)
Sample amount and processing period
| Method | Test item | Required sample | Number of samples | Number of days | Remarks |
|---|---|---|---|---|---|
| Plastic interior material (MS210-05) |
Thermal cycle | Product or reputation (100 mm X 350 mm) | 2 | 2 | For other specifications, negotiation is possible before the tese |
| Light resistance | At least 5cm in the flat area or reputation (100 mm X 350 mm) |
2 | 3 ~ 4 Different period by type |
||
| Abrasion resistance | reputation (100 mm X 350 mm) | 2 | 2 | ||
| Scratch resistance (Sapphire up / Erickson method) |
reputation (100 mm X 350 mm) | 2 | 2 | ||
| Thermal aging property | Product or reputation (100 mm X 350 mm) | 2 | 3 | ||
| Vibration resistance | Product & Jig | 2 | 4 | ||
| Fogging resistance(litter) | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Fouling resistance | Product or reputation (100 mm X 350 mm) | 4 | 2 | ||
| Heavy metal and harmful substances | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Antistatic property | reputation (100 mm X 350 mm) | 2 | 2 | ||
| Chemical resistance | Product or reputation (100 mm X 350 mm) | 4 | 2 | ||
| Impact resistance | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Plastic exterior material (MS210-06) |
Thermal cycle | Product or reputation (100 mm X 350 mm) | 2 | 2 | |
| Weatherability | Product (At least 5cm in the flat area) or reputation (100 mm X 350 mm) |
2 | 4 ~ 8 (Different period by type) |
||
| Vibration resistance | Product & Jig(Attachments note) | 2 | 4 | ||
| Water resistance | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Chemical resistance | Product or reputation (100 mm X 350 mm) | 4 | 2 | ||
| Impact resistance | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Scratch resistance | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Fouling resistance | Product or reputation (100 mm X 350 mm) | 4 | 2 | ||
| Heavy metal and harmful substances | Product or reputation (100 mm X 350 mm) | 2 | 2 | ||
| Painting - For plastic parts (MS 652-14) |
Hardness | 150 × 150 mm | 1 | 12 to 15 days, excluding accelerated weathering. If the weatherability is included, it can vary upon condition) | |
| Adhesive property | 75 × 150 mm | 1 | |||
| Gloss | 50 × 50 mm | 1 | |||
| Water resistance | notified product 1 | - | |||
| Impact resistance | notified product 1 | - | |||
| Moisture resistance | notified product 1 | - | |||
| Acid resistance | 75 × 150 mm | 1 | |||
| Alkari resistance | 75 × 150 mm | 1 | |||
| Gasoline resistance | 75 × 150 mm | 1 | |||
| Wax remover resistance | 75 × 150 mm | 1 | |||
| Salt spray resistance | 75 × 150 mm | 2 | |||
| Heat resistance | notified product 1 | - | |||
| Heat cycle resistance | notified product 1 | - | |||
| Accelerated weathering | 75 × 150 mm | 2 | |||
| Stain resistance | 75 × 150 mm | 1 | |||
| abrasion resistance | 50 × 150 mm For parts, negotiation is required. |
2 | |||
| Painting - for metal parts (MS 652-15) |
Hardness | 150 × 150 mm | 1 | 12 to 15 days, excluding accelerated weathering. If the weatherability is included, it can vary upon condition) | |
| adhesive property | 75 × 150 mm | 1 | |||
| Impact resistance | 50 × 50 mm | 1 | |||
| Thermal cycle | notified product 1 | 1 | |||
| Accelerated weathering | 75 × 150 mm | 1 | |||
| Water resistance | 75 × 150 mm | 1 | |||
| Acid resistance | 75 × 150 mm | 1 | |||
| Alkari resistance | 75 × 150 mm | 1 | |||
| Salt spray test | 75 × 150 mm | 1 | |||
| Oil resistance | 75 × 150 mm | 1 | |||
| Fuel oil resistance | 75 × 150 mm | 1 | |||
| Falling and abrasion test | To be negotiated | 1 | |||
| Wax resistance | 75 × 150 mm | 1 | |||
| Gasoline resistance | 75 × 150 mm | 1 | |||
| Wax remover resistance | 75 × 150 mm | 1 | |||
| Protective wax resistance | 75 × 150 mm | 1 | |||
| Film thickness | 75 × 150 mm | 1 | |||
| Combustibility of the material | Combustibility (state) MS 300-08 |
350 × 100 mm | 5 | Seven to eight days, excluding the case of leaving at high temperature (10 days in case of leaving at high temperature) | |
| Combustibility (leaving at high temperature) MS 300-08 |
350 × 100 mm | 5 | |||
| Combustibility FMVSS 302 |
350 × 100 mm | 5 | |||
| Odor test of interior materials (stink) | Odor MS 300-34 |
To be negotiated | To be negotiated | 7 ~ 8 | |
| Stink EDS-T-7603 |
To be negotiated | To be negotiated | |||
| Aromatic property SES E 150-01 |
To be negotiated | To be negotiated | |||
| PAD and foams | Peel strength, abrasion resistance, adhesive property, tensile test, etc. | To be negotiated | To be negotiated | Varies according to conditions | |
| W / STRIP | Abrasion resistance, freezability, weatherability, heat cycle resistance, etc. | ||||
| TAPE and labels | Friction resistance, light resistance, corrosion resistance, thermal resistance, etc. |
Introduction of test equipments
| Name of equipment (Korean/English) | Accelerated light resistance tester(Xenon Arc) / Xenon Arc Fade-O-Meter |
Accelerated light resistance tester(Xenon Arc) / Xenon Arc Fade-O-Meter |
|---|---|---|
| Model name | Ci4000 | Ci4000 & Ci5000 |
| Manufacturer (manufacturing country) | ATLAS(USA) | |
| Standard (test standard or scope of analysis) |
|
|
| Person in charge | Jae-Soon Lee, Senior Researcher of Compound Material Team, Institute of Key Material Indusustry (내선 3165) | |
| Principle and features | We measure the physical and chemical changes of materials by implementing an artificial climate environment similar to natural sunlight and the actual environment (estimating the discoloration and physical properties of each wavelength band). | |
| Applied field and test items |
- Automobile parts, paint, coating, rubber, plastic, film, etc. - Measurements of physical properties such as color difference, yellowing difference, gray scale, brightness difference, gloss change, tensile strength before and after exposure after a certain period of exposure. |
|
| Example of application | Estimation of ultraviolet stability of automotive component materials | |
| Remarks (processing period or test fe) |
To be negotiated with the client | |
Documents for requested examination
One copy of Test Request form
Test sample
A Copy of business registration certificate (at first request)
Test fee

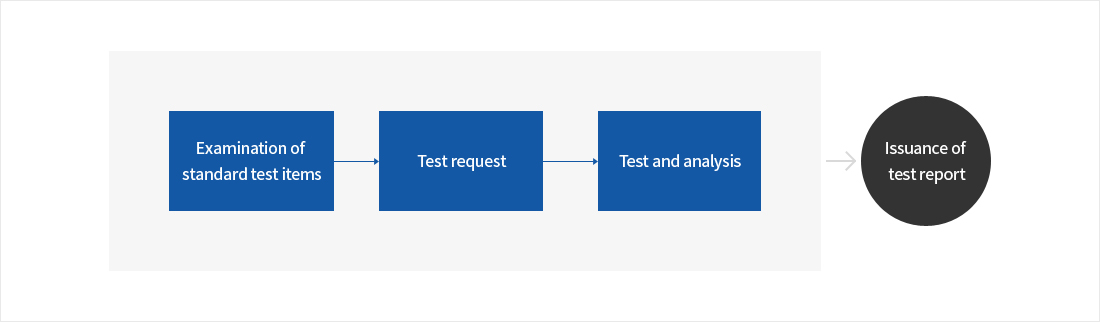

Procedure of task
- - Delivery of test sample : By home delivery or pick-up(mobile service available)
- - Payment of test fee : By cash, card or online deposit
- - Receipt of the report : Directly or by mail after the fax is sent
